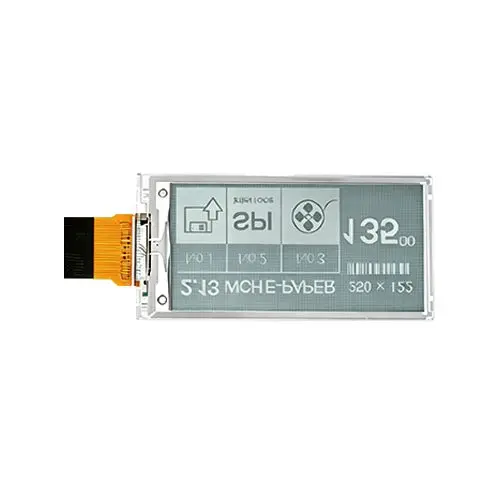

2.13 Inch ePaper Display Overview
The ND021EPN122250-A01 is a 2.13-inch black-and-white E Ink ePaper display with 122 × 250 resolution, an SSD1675A controller and a 24-pin SPI FPC. Its narrow rectangular panel suits text-focused labels and compact information readouts. Hardware teams should verify interface levels, panel supply sequencing, initialization and waveform requirements before connecting a host controller or designing a custom driver board.
Electronic shelf labels, asset tags, inventory markers and sensor readouts can retain status information between periodic updates without a backlight. NoseDisplay can assess ESP32 or STM32 sensor-node integration, Arduino prototypes and Raspberry Pi evaluation systems, including wiring and image-layout adaptation. OEM reviews may cover FPC routing, enclosure clearances and protective cover lenses. Refresh current and standby system load require configuration-specific verification.
The ND021EPN122250-A01 is a 2.13-inch black-and-white E Ink ePaper display with 122 × 250 resolution, SSD1675A control and a 24-pin SPI FPC. Its narrow reflective panel suits shelf labels, asset tags and compact sensor readouts. ESP32, STM32 or Raspberry Pi projects require verified interface levels, power sequencing, initialization and waveforms. NoseDisplay can review driver-board options, text-layout conversion, FPC routing and enclosure clearances.
Technical Specifications

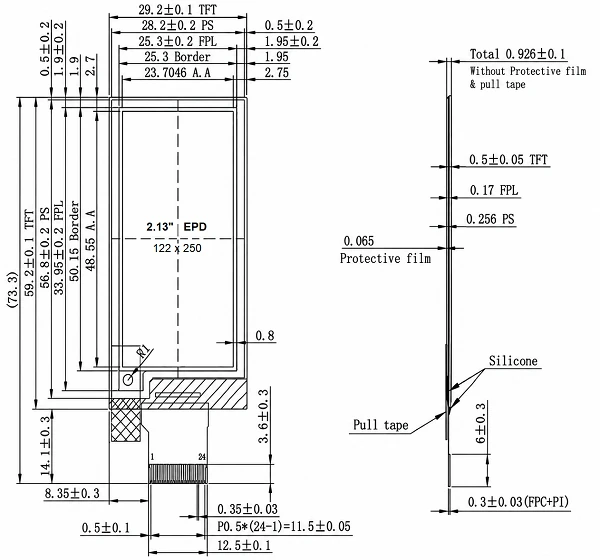

Mechanical Drawing & Interface Definition
Model: ND021EPN122250-A01
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Power ground |
| 02 | VDDIO | I/O interface supply (typically 3.3 V) |
| 03 | VCI | Core logic power supply |
| 04 | GND | Power ground |
| 05 | BUSY | Busy status output, active low |
| 06 | RES# | Hardware reset, active low |
| 07 | D/C# | Data/command selection: HIGH = data; LOW = command |
| 08 | CS# | Chip select, active low |
| 09 | SCLK | SPI clock |
| 10 | SDI | SPI data input (MOSI) |
| 11 | GND | Power ground |
| 12 | VPP | Programming / OTP supply; used in some applications, normally left open |
| 13 | VSH | Source high-voltage supply (internal boost circuit) |
| 14 | PREVGH | Gate high-voltage precharge |
| 15 | VGH | Gate high-voltage supply |
| 16 | VSL | Source low-voltage supply |
| 17 | VCOM | Common electrode voltage |
| 18 | VGL | Gate low-voltage supply |
| 19 | NC | No connection |
| 20 | NC | No connection |
| 21 | NC | No connection |
| 22 | NC | No connection |
| 23 | GND | Power ground |
| 24 | GND | Power ground |
