Product Overview

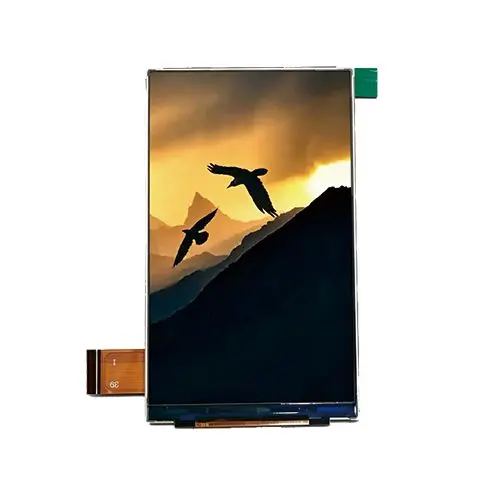

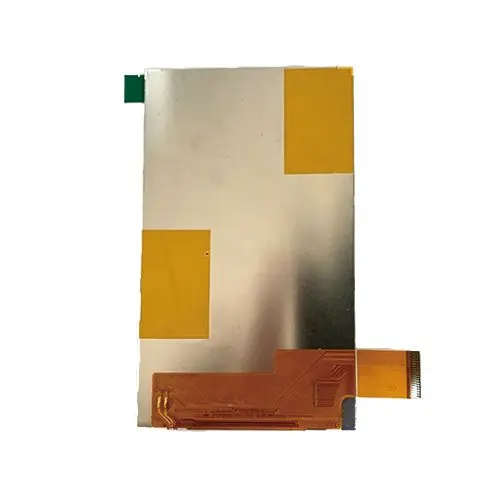

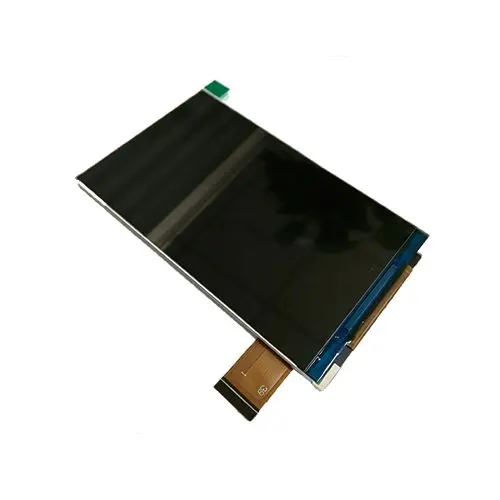

NoseDisplay ND040TFN480800-A01 is a transflective TN TFT LCD module for industrial instruments, outdoor equipment interfaces and embedded control panels. Its portrait format supports measurement screens, status lists and operator menus, with an MCU parallel interface for integration with a compatible host. The transflective display mode can be evaluated where ambient lighting changes during use. Review the model-specific mechanical drawing, electrical requirements and pin assignment before choosing a connector or enclosure. Sample evaluation should confirm viewing direction, readability and host compatibility under the intended operating conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND040TFN480800-A01 |
| Display Size | 4.0 Inch |
| Resolution | 480×800 pixels |
| Display Type | TN TFT LCD |
| Display Mode | Transflective |
| Touchscreen | -- |
| Outline Dimensions | 57.14 × 96.85 × 2.35 mm |
| Active Area | 51.84 × 86.4 mm |
| Parameter | Specification |
| Supply Voltage | 2.8–3.3 V |
| Luminance | 300 nits |
| Display Interface | MCU 16-bit |
| Connection Type | 39-pin connector |
| IC | ILI9806G |
| Weight | -- |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −30°C to +80°C |

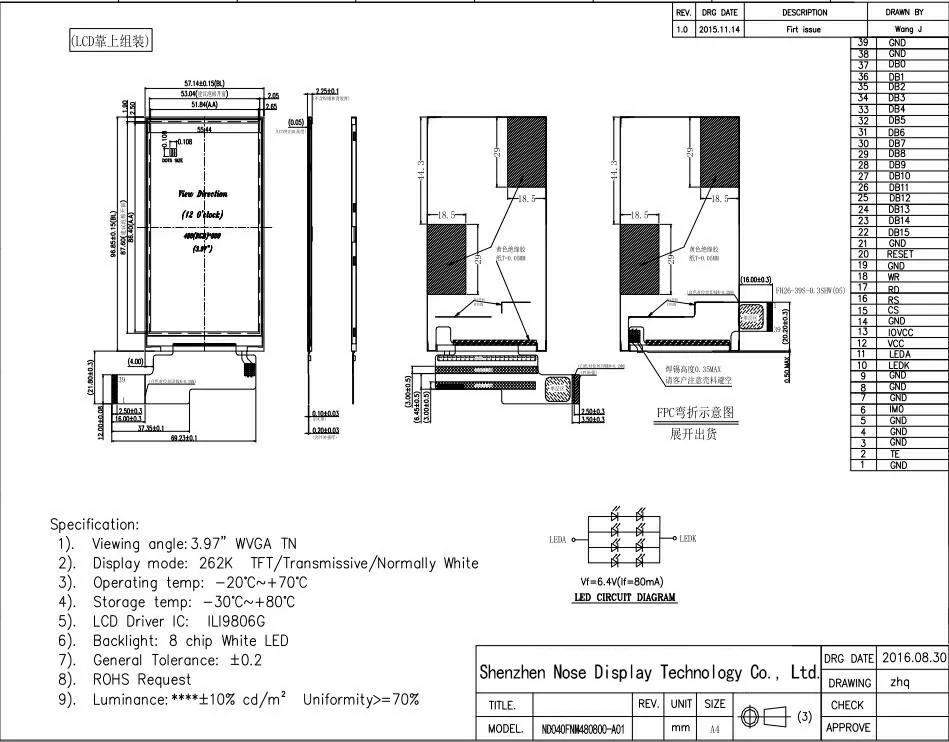

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Ground |
| 02 | TE | Tearing Effect Output |
| 03 | GND | Ground |
| 04 | GND | Ground |
| 05 | GND | Ground |
| 06 | IM0 | Interface Mode Select |
| 07 | GND | Ground |
| 08 | GND | Ground |
| 09 | GND | Ground |
| 10 | K | Backlight Cathode |
| 11 | A | Backlight Anode |
| 12 | VCC | POWER SUPPLY |
| 13 | IOVCC | I/O POWER SUPPLY |
| 14 | GND | Ground |
| 15 | CS | Chip Select |
| 16 | RS | Data/Command Select |
| 17 | RD | Read Enable |
| 18 | WR | Write Enable |
| 19 | GND | Ground |
| 20 | RESET | Reset |
| 21 | GND | Ground |
| 22 | DB15 | Data Bus |
| 23 | DB14 | Data Bus |
| 24 | DB13 | Data Bus |
| 25 | DB12 | Data Bus |
| 26 | DB11 | Data Bus |
| 27 | DB10 | Data Bus |
| 28 | DB9 | Data Bus |
| 29 | DB8 | Data Bus |
| 30 | DB7 | Data Bus |
| 31 | DB6 | Data Bus |
| 32 | DB5 | Data Bus |
| 33 | DB4 | Data Bus |
| 34 | DB3 | Data Bus |
| 35 | DB2 | Data Bus |
| 36 | DB1 | Data Bus |
| 37 | DB0 | Data Bus |
| 38 | GND | Ground |
| 39 | GND | Ground |
Sample Ordering & Delivery
Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.
Sample MOQ
3 pcs per modelMinimum 3 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
Typical Applications
Industrial Control
Smart Home Panels
Portable Instruments
Embedded IoT Devices
TFT LCD displays are widely used in industrial control panels, handheld instruments, smart home devices, embedded systems, IoT equipment, medical devices and other human-machine interface applications requiring clear, responsive visual output.
FPC & Connector Integration
FPC length, pinout, routing and connector position can be evaluated against your host PCB and enclosure requirements.
Panel & Interface Selection
Evaluate TFT panel options for resolution, brightness, viewing angle and interface, subject to the selected display IC.
PCB & Driver Board Design
Adapter PCBs and driver boards can be reviewed for host interfaces, power design and mechanical integration.
Touchscreen & Cover Lens
Capacitive or resistive touch, cover glass and PMMA lenses can be evaluated for your enclosure and application.
Quality & Compliance Support
We provide quality and compliance documentation for qualified OEM projects
based on the selected module, BOM and manufacturing configuration.
RoHS
EU RoHS compliant materials and process control
REACH
Support REACH regulation compliance
Reliability Testing
Environmental & mechanical reliability testing reports
ESD Control
ESD protection design and testing capability
Quality System
Manufactured under a certified quality management system
Documentation availability and scope are confirmed according to the selected module, BOM, manufacturing source and project requirements.
