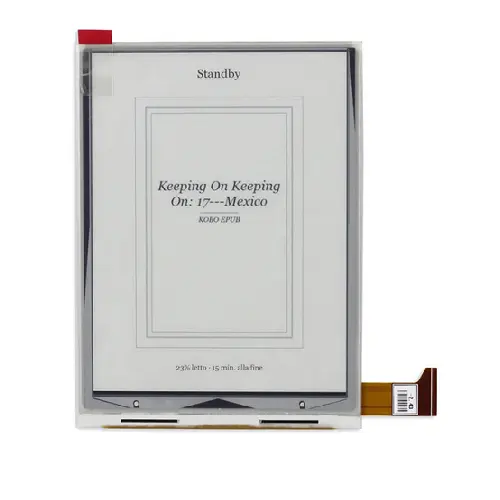

6.0 Inch ePaper Display Overview
ND060EPN7581024-A01 is a 6.0-inch black-and-white E Ink ePaper display with 758 × 1024 pixels and 16 grayscale levels. The existing specification lists an 8-bit MCU interface, IT8951E controller and 34-pin FPC. Confirm the controller-board configuration and mapping to the panel signals before integration; the design requires appropriate supply rails, power sequencing, initialization, waveform handling and image conversion.
The image area suits portable information terminals, electronic reading devices and equipment dashboards with periodic updates. Evaluate grayscale rendering, mounting orientation and enclosure clearances during prototyping. NoseDisplay can review the selected host interface and driver-board requirements for an ESP32, STM32 or Linux-based system, with compatibility, FPC routing, cover lenses and firmware support confirmed for each OEM configuration.
ND060EPN7581024-A01 is a 6.0-inch 758 × 1024 E Ink ePaper module with 16 grayscale levels. The specification lists an 8-bit MCU interface, IT8951E and a 34-pin FPC. It suits reading devices and portable information terminals with periodic updates. Confirm the controller-board configuration, panel-signal mapping, power sequencing, initialization and waveforms before integration. NoseDisplay can evaluate host interfaces, image conversion and enclosure requirements.
Technical Specifications

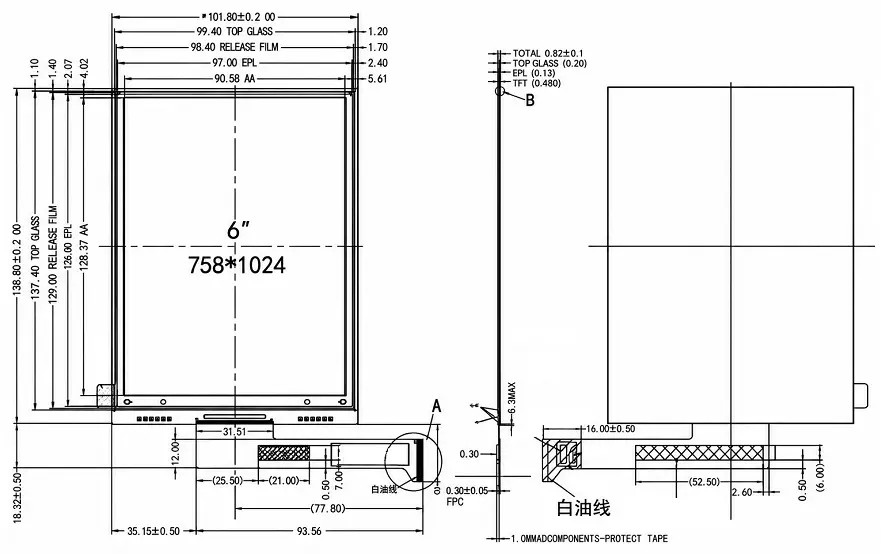

Mechanical Drawing & Interface Definition
Model: ND060EPN7581024-A01
Download Center contact an engineer
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | VNEG | Negative power supply source driver |
| 02 | VGL | Negative power supply gate driver |
| 03 | VSS | Ground |
| 04 | NC | NO Connection |
| 05 | NC | NO Connection |
| 06 | VDD | Digital power supply drivers |
| 07 | VSS | Ground |
| 08 | CLK | Clock source driver |
| 09 | VSS | Ground |
| 10 | LE | Latch enable source driver |
| 11 | OE | Output enable source driver |
| 12 | SPH | Start pulse source driver |
| 13 | D0 | Data signal source driver |
| 14 | D1 | Data signal source driver |
| 15 | D2 | Data signal source driver |
| 16 | D3 | Data signal source driver |
| 17 | D4 | Data signal source driver |
| 18 | D5 | Data signal source driver |
| 19 | D6 | Data signal source driver |
| 20 | D7 | Data signal source driver |
| 21 | VCOM | Common connection |
| 22 | NC | NO Connection |
| 23 | NC | NO Connection |
| 24 | NC | NO Connection |
| 25 | NC | NO Connection |
| 26 | VSS | Ground |
| 27 | NC | NO Connection |
| 28 | CPV | Shift clock input |
| 29 | STV | Start pulse gate driver |
| 30 | NC | NO Connection |
| 31 | VBORDER | Border connection |
| 32 | VSS | Ground |
| 33 | VPOS | Positive power supply source driver |
| 34 | VGH | Positive power supply gate driver |
