ND050PNM4888-A01 | 0.5 inch OLED Display White 48x88 Resolution with I2C Interface and Optional Touchscreen for Arduino

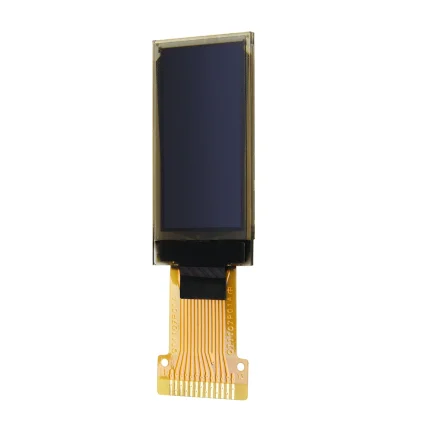

The ND050PNM4888-A01 is a compact 0.5 inch PMOLED display designed for engineers and developers who require crisp, high-contrast visuals in ultra-small form factors. Featuring a 48×88 resolution and a bright 450 cd/m² luminance, this transmissive OLED module delivers sharp imagery with low power consumption. Equipped with the CH1115 controller and an I2C interface, it seamlessly integrates with Arduino and similar development boards. Its robust operating temperature range from -40°C to 70°C makes it suitable for a variety of portable and industrial applications.
Key Features:
Ultra-Compact High-Brightness Display: 0.5 inch active area (6.124 x 11.244 mm) with 450 cd/m² luminance ensures clear, bright visuals even in challenging lighting conditions
Touchscreen Option Available: Adds interactivity for control and user input in compact devices
Simple Integration: I2C interface and 14-pin connector compatible with Arduino, ESP32, and other microcontrollers
Wide Temperature Range: Reliable performance from -40°C to 70°C supports industrial and outdoor environments
Ideal for wearable devices, portable instrumentation, and embedded systems where space and power efficiency are critical, this PMOLED module offers sharp display quality with flexible connectivity.
Search Keywords:
0.5 inch PMOLED, 0.5 inch OLED display, 48×88 OLED screen, I2C OLED module, CH1115 OLED display, OLED display for Arduino, small OLED screen, OLED 0.5”, 0.5” touchscreen OLED
General Specifications
| Part No.: | ND050PNM4888-A01 |
| Size: | 0.5 inch |
| Display Format: | 48×88 Resolution |
| Display Type: | PMOLED Display |
| Display Mode: | Transmissive |
| Touchscreen: | Yes (Optional with No) |
| Optimal View: | Full View |
| Outline Dimension: | 8.93 x 17.1 × 1.21 (mm) |
| Active Area: | 6.124 × 11.244 (mm) |
| Supply Voltage: | 2.8V |
| Luminance | 450cd/m² |
| Interface: | I2C |
| Connection Type: | 14 pin connector |
| Controller： | CH1115 |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | -40°C ~ 70°C |
| Storage Temperature: | -40°C ~ 85°C |
| Mount Frame: | None |
Display Drawing
Interface Definition
| NO. | Symbol | Function |
|---|---|---|
| 1 | C2P | Positive Terminal of the Flying Inverting Capacitor Negative Terminal of the Flying Boost Capacitor The charge-pump capacitors are required between the terminals. They must be floated when the converter is not used. |
| 2 | C2N | |
| 3 | C1P | |
| 4 | C1N | |
| 5 | VDD2(VBAT) | Power Supply for DC/DC Converter Circuit This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD when the converter is not used. |
| 6 | NC | No Connection. |
| 7 | VSS | Ground of Logic Circuit This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground. |
| 8 | VDD1(VDD) | Power Supply for Logic This is a voltage supply pin. It must be connected to external source. |
| 9 | RES# | Power Reset for Controller and Driver This pin is reset signal input. When the pin is low, initialization of the chip is executed. |
| 10 | SCL | serial clock input |
| 11 | SDA | serial data line |
| 12 | IREF | Current Reference for Brightness Adjustment This pin is segment current reference pin. A resistor should be connected between this pin and VSS. |
| 13 | VCOMH | Voltage Output High Level for COM Signal This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS. |
| 14 | VPP(VCC) | Power Supply for OEL Panel This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used. |
Custom 0.5'' PMOLED display
We offer custom 0.5'' PMOLED display modules, allowing you to adjust key specifications such as resolution, brightness, and interface options. Our solutions also include personalized connector placements and seamless integration with platforms like Arduino, ensuring optimal system performance.
Custom OLED Display
Design the perfect 0.5” OLED display with fully customizable sizes, resolutions, and configurations, tailored to meet your unique design and application needs.
Custom OLED Interfaces
Customizable cable lengths and connector configurations for 0.5” OLED modules ensure precise integration with your system, delivering reliable performance and flawless display alignment.
0.5'' OLED PCB Design
Optimized PCB design for 0.5” OLED modules ensures efficient power distribution and signal integrity, providing stable, high-quality display performance in compact systems.
Different Color Options
Choose from a variety of color options for 0.5” OLED modules, offering customized visual experiences and enhanced design flexibility to perfectly suit your project or application.
