Product Overview

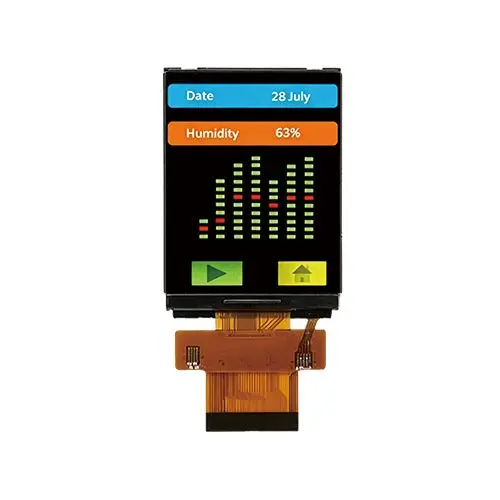

NoseDisplay ND028TSN240320-A01 is a 2.8 inch IPS TFT LCD module with a 240×320 pixel display for product interface development. Its MCU interface and ST7789P3-G6 controller support integration into host display designs for handheld instruments, embedded controls and compact equipment interfaces. The panel can present operating status, menus and visual prompts within a model-specific hardware design. Review the specification, mechanical drawing and pin definitions when planning host connections, backlight control and enclosure integration. NoseDisplay can help evaluate display requirements, samples and project-specific customization before selecting the final configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND028TSN240320-A01 |
| Display Size | 2.8 Inch |
| Resolution | 240×320 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | No (Optional with YES) |
| Outline Dimensions | 46.80 × 66.50 × 2.15 mm |
| Active Area | 43.20 × 57.60 mm |
| Parameter | Specification |
| Supply Voltage | 2.8V |
| Luminance | 500cd/m² |
| Display Interface | MCU |
| Connection Type | 20 pin connector |
| IC | ST7789P3-G6 |
| Weight | -- |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |

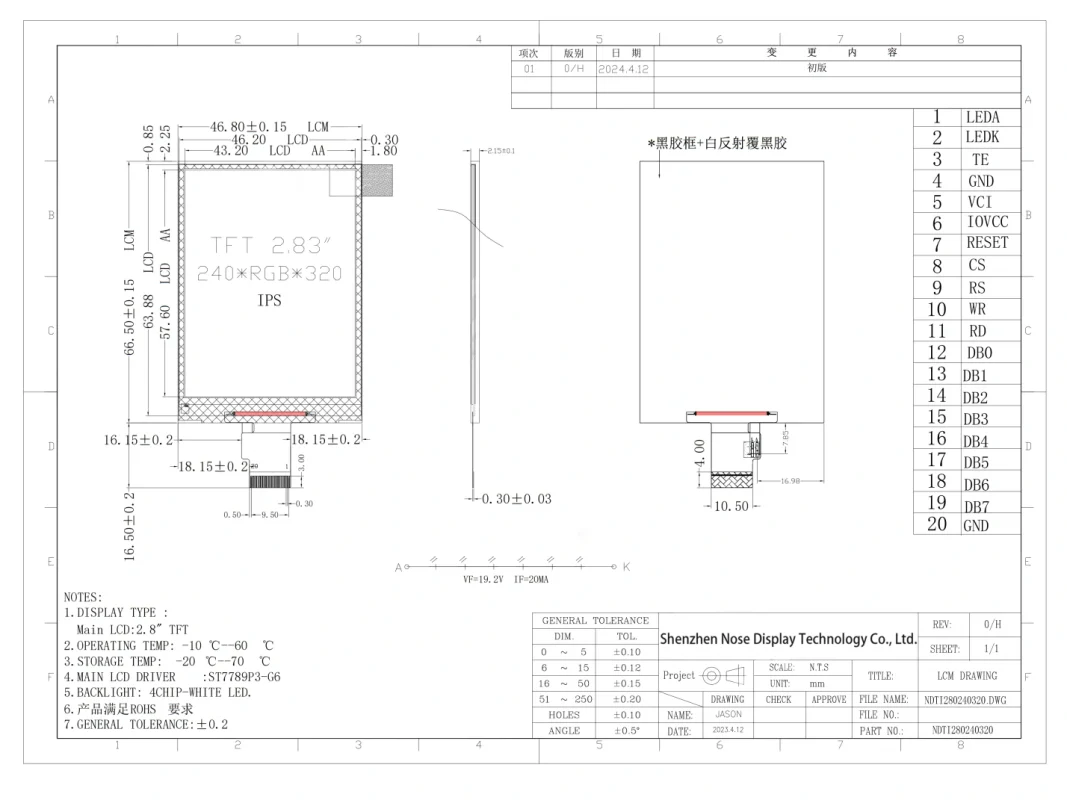

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | LEDA | Backlight Anode |
| 02 | LEDK | Backlight Cathode |
| 03 | TE | Tearing Effect Output |
| 04 | GND | Ground |
| 05 | VCI | POWER SUPPLY |
| 06 | IOVCC | I/O POWER SUPPLY |
| 07 | RESET | Reset |
| 08 | CS | Chip Select |
| 09 | RS | Data/Command Select |
| 10 | WR | Write Enable |
| 11 | RD | Read Enable |
| 12 | DB0 | Data Bus |
| 13 | DB1 | Data Bus |
| 14 | DB2 | Data Bus |
| 15 | DB3 | Data Bus |
| 16 | DB4 | Data Bus |
| 17 | DB5 | Data Bus |
| 18 | DB6 | Data Bus |
| 19 | DB7 | Data Bus |
| 20 | GND | Ground |
